Push Notifications

Push Notifications provide a way to deliver some information to a user while they are not using your app actively. The following use cases can be covered by push notifications:

• Offline messages. Send a chat message when a recipient is offline. In this case, a push notification will be sent automatically if the user is offline.
• Offline calls. Make a video/audio call with offline opponents. In this case, a push notification will be sent manually.
• Requests to contact list. Send requests to add a user to the contact list. In this case, a push notification will be sent manually).
• User tags. Send notifications to specific user groups defined by tags.

Visit Key Concepts page to learn the most important QuickBlox concepts.

​

Before you begin

1. Register a QuickBlox account. This is a matter of a few minutes and you will be able to use this account to build your apps.
2. Configure QuickBlox SDK for your app. Check out Setup page for more details.
3. Create a user session to be able to use QuickBlox functionality. See Authentication page to learn how to do it.

​

Configure Firebase project and API key

To start working with push notifications functionality, you need to configure it. At first, you should create a Firebase account if you haven’t it. Then you should configure your Firebase project and obtain the API key.

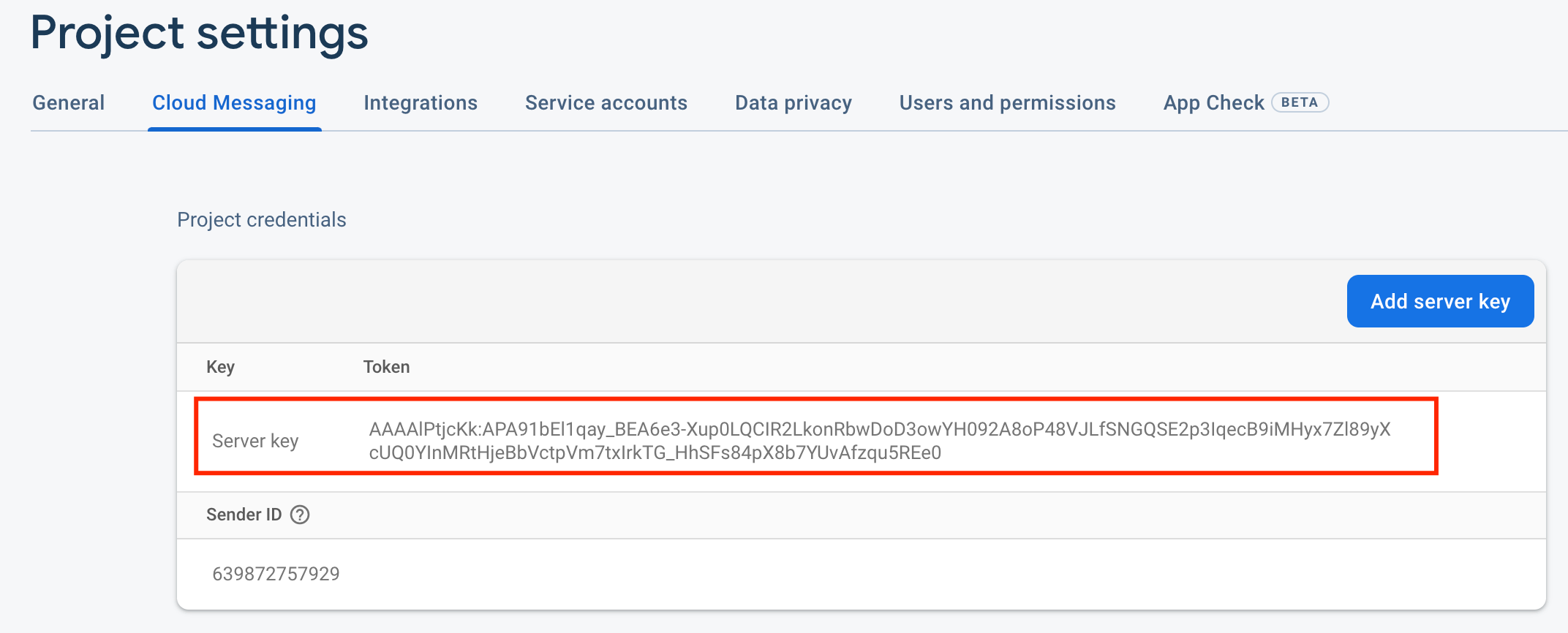

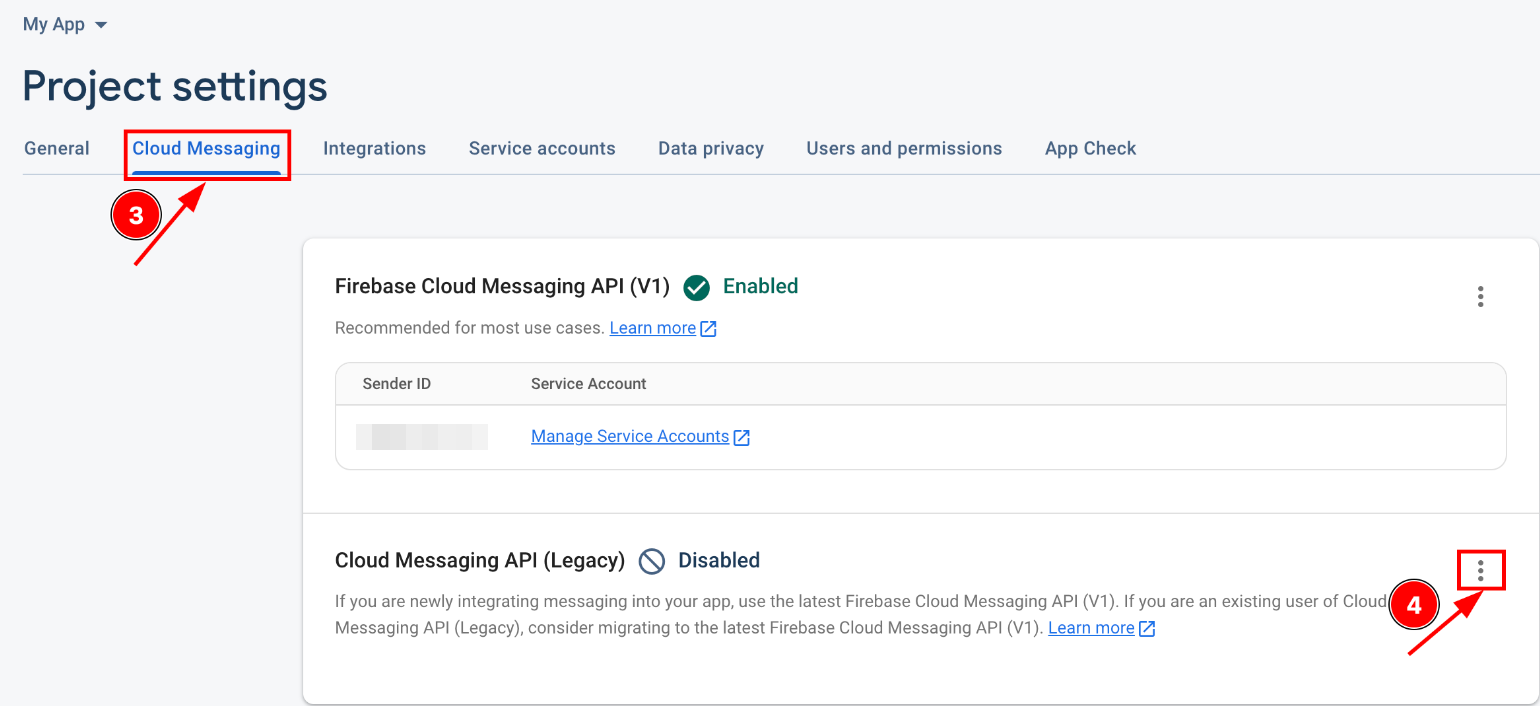

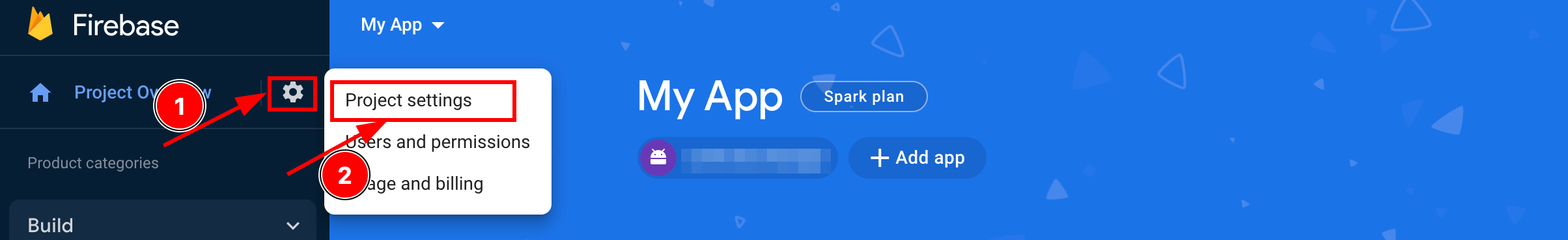

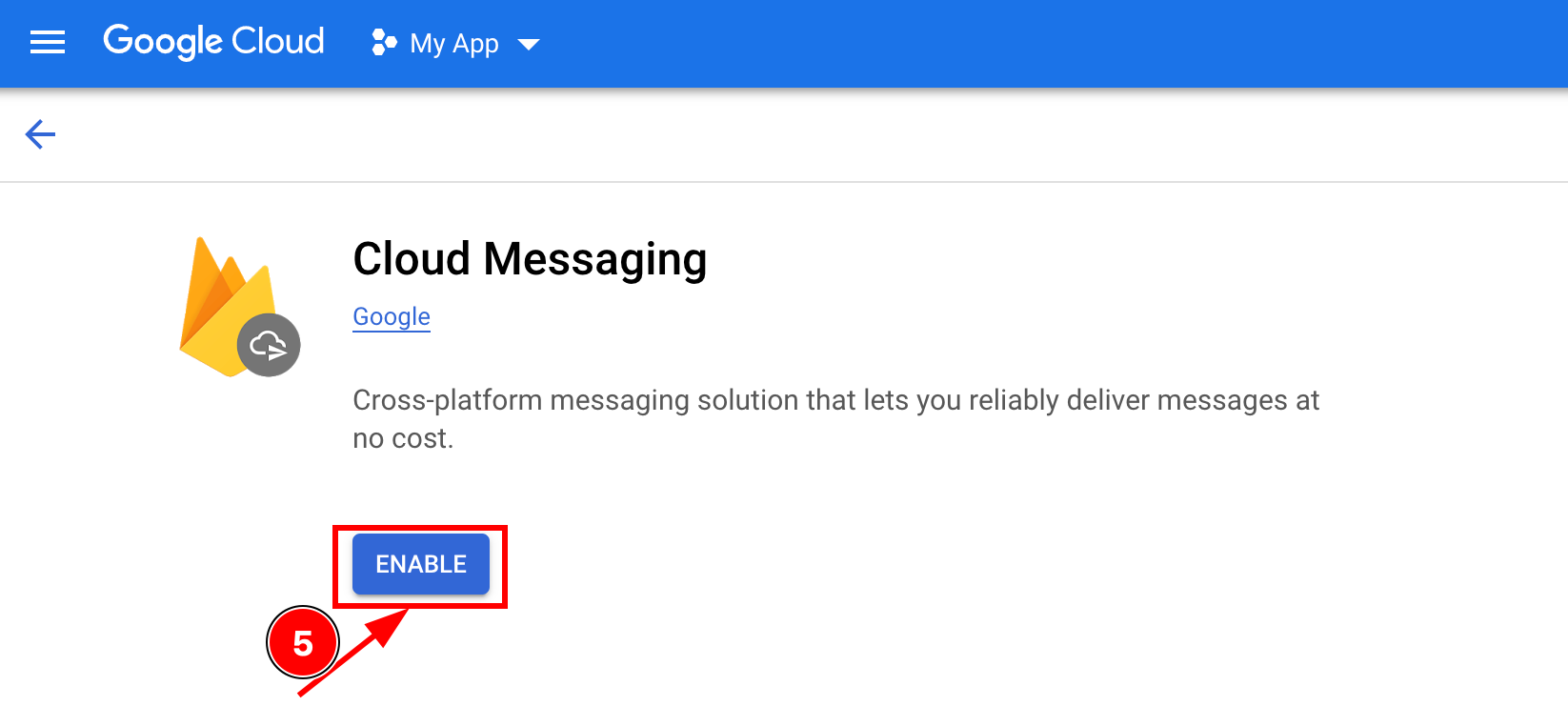

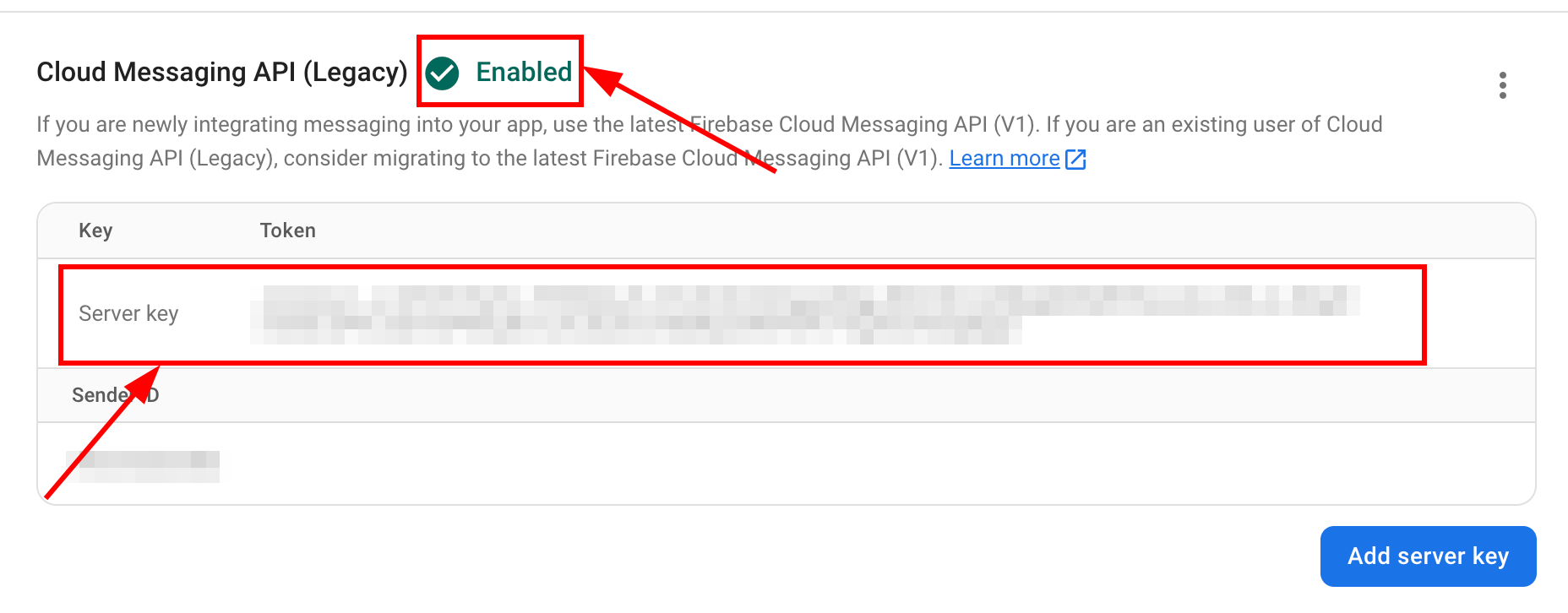

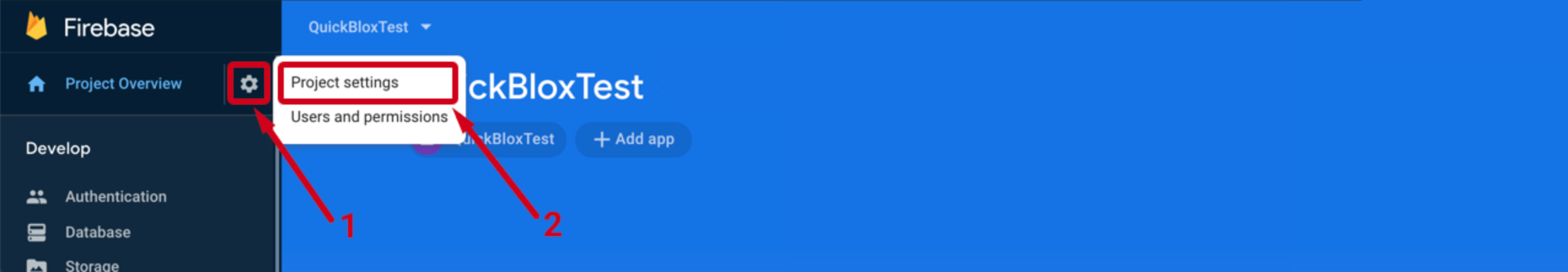

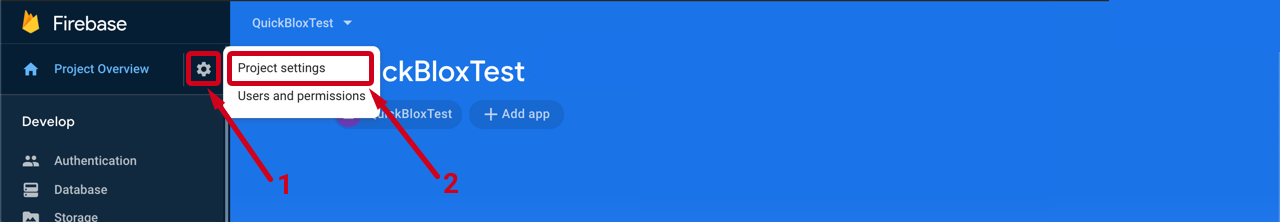

1. To find your FCM server key, go to your Firebase console => Project Settings => Cloud Messaging.

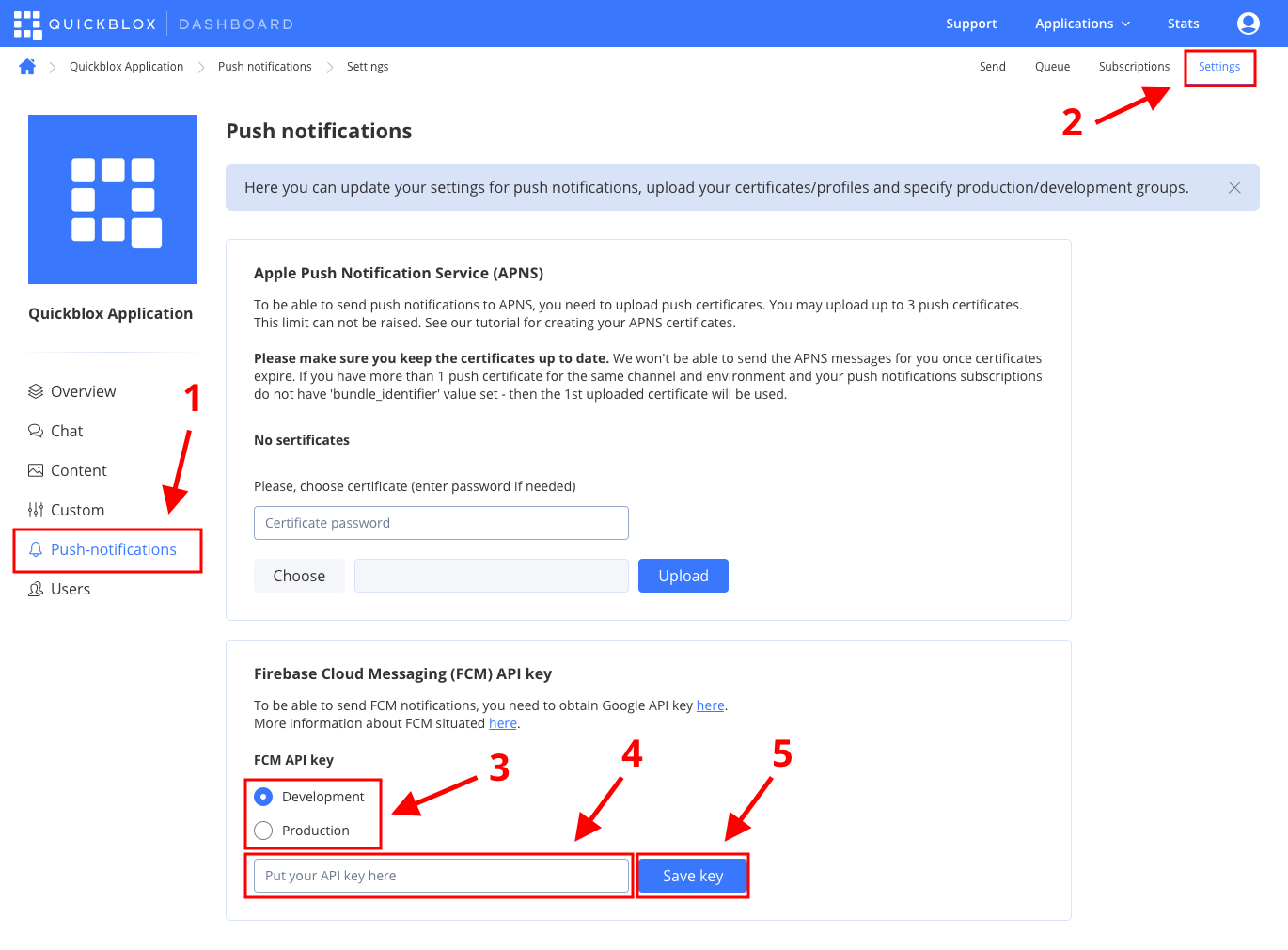

2. Copy the server key to your Dashboard => YOUR_APP => Push Notifications => Settings, select the environment for which you are adding the key and click the Save key. Use the same server key for development and production zones. You can use both these environments up to you.

​

Add Firebase to your Project

1. As part of enabling Firebase services in your Android application, you need to add the google-services dependency to your project-level build.gradle file.

buildscript {

    // ...

    dependencies {
        // ...
        classpath 'com.google.gms:google-services:4.3.10'
    }
}

2. Add FCM dependency to your app level build.gradle file.

implementation "com.google.firebase:firebase-core:20.0.0"

3. Include a gms plugin to your app level build.gradle file.

apply plugin: 'com.google.gms.google-services'

4. Download the google-services.json file from your Firebase Project dashboard and put it into your app folder in your Android project.

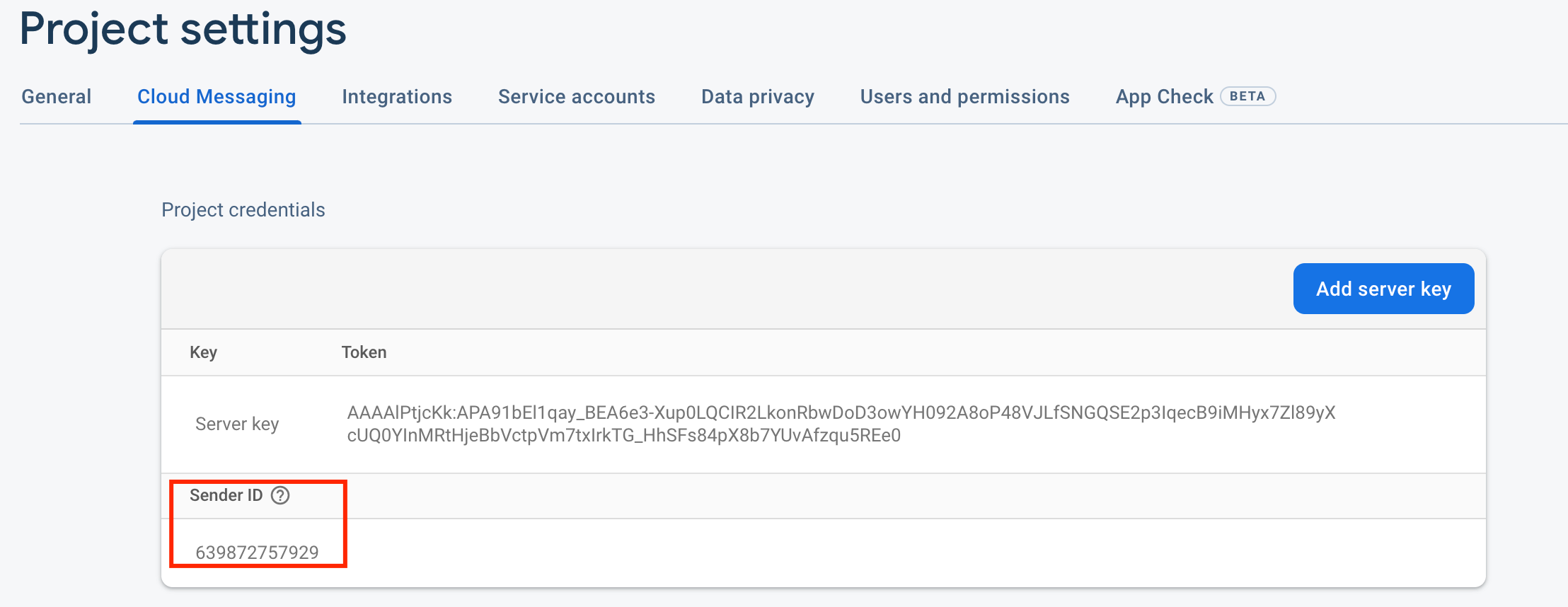

5. Copy the sender ID value following Firebase console => Project Settings => Cloud Messaging.

6. Edit your app AndroidManifest file and add your Firebase sender ID as well as notification type and environment to integrate automatic push subscription.

<meta-data
    android:name="com.quickblox.messages.TYPE"
    android:value="FCM"/>
<meta-data
    android:name="com.quickblox.messages.SENDER_ID"
    android:value="639872757929"/>
<meta-data
    android:name="com.quickblox.messages.QB_ENVIRONMENT"
    android:value="DEVELOPMENT"/>

• com.quickblox.messages.TYPE - can be GCM or FCM.
• com.quickblox.messages.SENDER_ID - your sender ID from google console (for example, 639872757929).
• com.quickblox.messages.QB_ENVIRONMENT - can be DEVELOPMENT or PRODUCTION.

7. Then you need to setup QBFcmPushListenerService and QBFcmPushInstanceIDService in AndroidManifest.

<service android:name="com.quickblox.messages.services.fcm.QBFcmPushListenerService">
    <intent-filter>
        <action android:name="com.google.firebase.MESSAGING_EVENT"/>
    </intent-filter>
</service>

<service android:name="com.quickblox.messages.services.fcm.QBFcmPushInstanceIDService">
    <intent-filter>
        <action android:name="com.google.firebase.INSTANCE_ID_EVENT"/>
    </intent-filter>
</service>

​

Automatic push subscription

QuickBlox Android SDK provides automatic push subscription management. It means that you do not need to bother how to get FCM device token, create push subscription, and what to do with the received data. Thus, you can reduce your code and make it cleaner.

​

Enable/Disable push subscription

Here you can use a global setting to enable or disable delivery of push notifications. Set this parameter only once.

QBSettings.getInstance().setEnablePushNotification(false);
// by default is true

boolean isEnabled = QBSettings.getInstance().isEnablePushNotification();

QBSettings.getInstance().setEnablePushNotification(false);
// by default is true

boolean isEnabled = QBSettings.getInstance().isEnablePushNotification();

QBSettings.getInstance().isEnablePushNotification = true
// By Default is TRUE

boolean isEnabled = QBSettings.getInstance().isEnablePushNotification

​

Track subscription status

To be aware of what is happening with your push subscription, whether you’re subscribed successfully or not, you can use the QBSubscribeListener. Just add QBSubscribeListener right after the QBSettings.getInstance().init() code.

QBPushManager.getInstance().addListener(new QBPushManager.QBSubscribeListener() {
    @Override
    public void onSubscriptionCreated() {

    }

    @Override
    public void onSubscriptionError(Exception exception, int resultCode) {
        if (resultCode >= 0) {
            // might be Google play service exception
        }
    }

    @Override
    public void onSubscriptionDeleted(boolean delete) {

    }
});

QBPushManager.getInstance().addListener(new QBPushManager.QBSubscribeListener() {
    @Override
    public void onSubscriptionCreated() {

    }

    @Override
    public void onSubscriptionError(Exception exception, int resultCode) {
        if (resultCode >= 0) {
            // might be Google play service exception
        }
    }

    @Override
    public void onSubscriptionDeleted(boolean delete) {

    }
});

QBPushManager.getInstance().addListener(object : QBPushManager.QBSubscribeListener {
    override fun onSubscriptionCreated() {

    }

    override fun onSubscriptionError(exception: Exception?, resultCode: Int?) {
        if (resultCode >= 0) {
            // might be Google play service exception
        }
    }

    override fun onSubscriptionDeleted(deleted: Boolean?) {

    }
})

​

Manual push subscription

If you do not want to use the automatic push subscription feature, then do the following:

1. Set SubscribePushStrategy.NEVER as the main strategy.

// default SubscribePushStrategy.ALWAYS
QBSettings.getInstance().setSubscribePushStrategy(SubscribePushStrategy.NEVER)

// default SubscribePushStrategy.ALWAYS
QBSettings.getInstance().setSubscribePushStrategy(SubscribePushStrategy.NEVER)

// default SubscribePushStrategy.ALWAYS
QBSettings.getInstance().subscribePushStrategy = SubscribePushStrategy.NEVER

In this case, you need to subscribe and unsubscribe manually using the following methods:

SubscribeService.subscribeToPushes(context, false);
SubscribeService.unSubscribeFromPushes(context);

SubscribeService.subscribeToPushes(context, false);
SubscribeService.unSubscribeFromPushes(context);

SubscribeService.subscribeToPushes(context, false)
SubscribeService.unSubscribeFromPushes(context)

2. And then in your class extended from QBFcmPushListenerService you need to handle when the token is refreshed:

@Override
public void onNewToken(String token) {
    boolean tokenRefreshed = true;
    SubscribeService.subscribeToPushes(context, tokenRefreshed);
}

@Override
public void onNewToken(String token) {
    boolean tokenRefreshed = true;
    SubscribeService.subscribeToPushes(context, tokenRefreshed);
}

override fun onNewToken(token: String?) {
    val tokenRefreshed = true
    SubscribeService.subscribeToPushes(context, tokenRefreshed)
}

3. Add your class extended from QBFcmPushListenerService to the Manifest file.

<service android:name="your_file_location.YourFilePushListenerService">
    <intent-filter>
        <action android:name="com.google.firebase.MESSAGING_EVENT"/>
    </intent-filter>
</service>

<service android:name="com.quickblox.messages.services.fcm.QBFcmPushInstanceIDService">
    <intent-filter>
        <action android:name="com.google.firebase.INSTANCE_ID_EVENT"/>
    </intent-filter>
</service>

​

Send push notifications

You can manually initiate sending of push notifications to a user/users on any event in your application. To send a push notification, you should use QBEvent, fill its fields with push notification parameters (payload) and set push recipients.

StringifyArrayList<Integer> userIds = new StringifyArrayList<>();

for (QBUser user : userList) {
    userIds.add(user.getId());
}

QBEvent event = new QBEvent();
event.setUserIds(userIDs);
event.setEnvironment(QBEnvironment.DEVELOPMENT);
event.setNotificationType(QBNotificationType.PUSH);
event.setPushType(QBPushType.GCM);

HashMap<String, Object> customData = new HashMap<>();
customData.put("data.message", "Hello QuickBlox");
customData.put("data.type", "First QuickBlox Push");

event.setMessage(customData);

QBPushNotifications.createEvents(event).performAsync(new QBEntityCallback<QBEvent>() {
    @Override
    public void onSuccess(QBEvent event, Bundle bundle) {

    }

    @Override
    public void onError(QBResponseException exception) {

    }
});

StringifyArrayList<Integer> userIds = new StringifyArrayList<>();

for (QBUser user : userList) {
    userIds.add(user.getId());
}

QBEvent event = new QBEvent();
event.setUserIds(userIDs);
event.setEnvironment(QBEnvironment.DEVELOPMENT);
event.setNotificationType(QBNotificationType.PUSH);
event.setPushType(QBPushType.GCM);

HashMap<String, Object> customData = new HashMap<>();
customData.put("data.message", "Hello QuickBlox");
customData.put("data.type", "First QuickBlox Push");

event.setMessage(customData);

QBPushNotifications.createEvents(event).performAsync(new QBEntityCallback<QBEvent>() {
    @Override
    public void onSuccess(QBEvent event, Bundle bundle) {

    }

    @Override
    public void onError(QBResponseException exception) {

    }
});

val userIds = StringifyArrayList<Int>()

for (user in userList) {
    userIds.add(user.id)
}

val event = QBEvent()
event.userIds = userIDs
event.environment = QBEnvironment.DEVELOPMENT
event.notificationType = QBNotificationType.PUSH
event.pushType = QBPushType.GCM

val customData = HashMap<String, Any>()
customData["data.message"] = "Hello QuickBlox"
customData["data.type"] = "First QuickBlox Push"

event.setMessage(customData)

QBPushNotifications.createEvent(event).performAsync(object : QBEntityCallback<QBEvent> {
    override fun onSuccess(event: QBEvent?, bundle: Bundle?) {

    }

    override fun onError(exception: QBResponseException?) {

    }
})

​

Receive push notifications

To receive push notifications, you should register the BroadcastReceiver.

BroadcastReceiver pushBroadcastReceiver = new BroadcastReceiver() {
    @Override
    public void onReceive(Context context, Intent intent) {
        String message = intent.getStringExtra("message");
        String from = intent.getStringExtra("from");
    }
};

LocalBroadcastManager.getInstance(this).registerReceiver(pushBroadcastReceiver, new IntentFilter("new-push-event"));

BroadcastReceiver pushBroadcastReceiver = new BroadcastReceiver() {
    @Override
    public void onReceive(Context context, Intent intent) {
        String message = intent.getStringExtra("message");
        String from = intent.getStringExtra("from");
    }
};

LocalBroadcastManager.getInstance(this).registerReceiver(pushBroadcastReceiver, new IntentFilter("new-push-event"));

val pushBroadcastReceiver = object : BroadcastReceiver() {
    override fun onReceive(context: Context, intent: Intent) {
        val message = intent.getStringExtra("message")
        val from = intent.getStringExtra("from")
    }
}

LocalBroadcastManager.getInstance(this).registerReceiver(pushBroadcastReceiver, IntentFilter("new-push-event"))

Or use the onMessageReceived() in your class that extends QBFcmPushListenerService.

@Override
public void onMessageReceived(RemoteMessage remoteMessage) {
    String from = remoteMessage.getFrom();
    Map<String, String> data = remoteMessage.getData();
}

@Override
public void onMessageReceived(RemoteMessage remoteMessage) {
    String from = remoteMessage.getFrom();
    Map<String, String> data = remoteMessage.getData();
}

override fun onMessageReceived(remoteMessage: RemoteMessage?) {
    val from = remoteMessage?.from
    val data = remoteMessage?.data
}

​

Troubleshooting

​

Push notifications are not received on Android devices

Cause 1: incorrect FCM server key is set in the Dashboard.

Tip: check if you put a correct FCM server key into the FCM API key field in the Dashboard => YOUR_APP => Push Notifications => Settings. See how to obtain the FCM server key and where to set it here.

It is possible that you are using the FCM sender ID instead of the FCM server key in the Dashboard. Try to send the message from a Firebase console directly. If a message has appeared, a problem is in the FCM server key. If the FCM server key is incorrect, then there will be the following error: error 401 (Unauthorized, check your App auth_key). This means that the QuickBlox server wasn’t able to authorize on the Firebase server.

Cause 2: incorrect FCM sender ID in the google-services.json file.

Cause 3: the push is sent to the production zone while the device is subscribed to the development zone or vice versa.

​

A subscription is removed after a push is sent and the push isn’t delivered

Cause: a device registration token is invalid.

1. Some other data is set instead of a correct device registration token. For example, a Firebase project ID, Firebase user token, etc.
2. The client app unregistered itself from GCM/FCM. This can happen if the user uninstalls the application or, on iOS, if the APNs Feedback Service reported the APNs token as invalid.
3. The registration token expired. For example, Google might decide to refresh registration tokens or the APNs token may have expired for iOS devices.
4. The client app was updated, but the new version is not configured to receive messages.

For all these cases, remove the invalid device registration token and stop using it to send messages. Then, obtain a new token and make sure to create a new subscription with a valid token.
