Push Notifications

Learn how to send push notifications to users when they are offline.

Push Notifications provide a way to deliver some information to a user while they are not using your app actively. The following use cases can be covered by push notifications:

  • Offline messages. Send a chat message when a recipient is offline. In this case, a push notification will be sent automatically if the user is offline.
  • Offline calls. Make a video/audio call with offline opponents. In this case, a push notification will be sent manually.
  • Requests to contact list. Send requests to add a user to the contact list. In this case, a push notification will be sent manually).
  • User tags. Send notifications to specific user groups defined by tags.

Visit our Key Concepts page to get an overall understanding of the most important QuickBlox concepts.

Before you begin

  1. Register a QuickBlox account. This is a matter of a few minutes and you will be able to use this account to build your apps.
  2. Configure QuickBlox SDK for your app. Check out our Setup page for more details.
  3. Create a user session to be able to use QuickBlox functionality. See our Authentication page to learn how to do it.

Create APNS certificate

Create App ID

Each iOS application that uses the APNs must have a unique application ID that uniquely identifies your app. The following steps describe how to create an Apple App ID for your application.

If you already have an App ID, you can skip these steps.

  1. Once you have signed in to the iPhone Developer Connection Portal, click on Certificates, IDs & Profiles.
1407
  1. On the next screen, select Identifiers => App IDs in the left sidebar and then click on the plus button in the top right corner.
1374
  1. Enter your app name for the App ID Description section. In the App ID Suffix section, select the Explicit App ID option and enter Bundle Identifier in the corresponding field.
785

❗️

Ensure you have created an App ID without a wildcard. Make sure it doesn’t have an asterisk in it. Wildcard IDs cannot use the push notification service.

  1. Locate App services section and check Push Notifications as the service you would like to add in your app.
  2. Once you have entered all information, scroll down to the bottom of the page and select Continue button.
831
  1. You will now be presented with an overview of your new app ID. Click Register button to continue.
659

Generate a Certificate Signing Request

You need to generate a certificate signing request file so that you can use it to request an APNS SSL certificate later on. Follow the instructions below to create one:

  1. Launch the Keychain Access application in your macOS and select Keychain Access => Certificate Assistant => Request a Certificate From a Certificate Authority.
1088
  1. Enter the required information and check the Saved to disk option. Click Continue.
904
  1. Save the certificate request using the suggested name and click Save.
915

Create universal APNS certificate

  1. On the Certificates, IDs & Profiles screen locate Certificates => All section in the left sidebar and then click on the plus button in the top right corner of the screen.
967
  1. The Add iOS Certificate screen will appear. Choose Apple Push Notifications service SSL (Sandbox & Production) option and click Continue:
1084

Here we will create a single universal push certificate that is good for both Development and Production environments.

  1. On the next screen choose an App ID you want to create a push certificate for. Then click Continue.
1313
  1. Locate About Creating a Certificate Signing Request (CSR) and click Continue:
1016
  1. Click Choose File... button to locate Certificate Request File that you have saved earlier. Click Continue.
858
  1. Your APNS SSL Certificate will now be generated. Click Download and save it to your hard disk.
846

You can also download your new certificate on App ID details page.

756

Create p12 file

  1. Once your certificate has been created, open the file with Keychain Access app on your computer. If you are asked which keychain to add the certificate to, select login option. SSL certificate will be used by provider(QuickBlox) application so that it can contact the APNs to send push notifications to your applications.
  2. Still in Keychain Access app, select Certificates option in the bottom section of the left sidebar. You will now need to find the certificate you have created. It will have the name Apple Push Services: < Bundle ID > and paired with a private key.
  3. Right-click on this key and select Export "Apple Push Services ..." option.
1230

In the popup that appears, you can call the file whatever you want, but make sure that File Format is set to Personal Information Exchange (.p12).

When exporting the certificate, you can provide a password for the p12 file.

That's all. Now you have a ready-to-go APNS certificate that can be used on both the Development and Production environments of your iOS app.

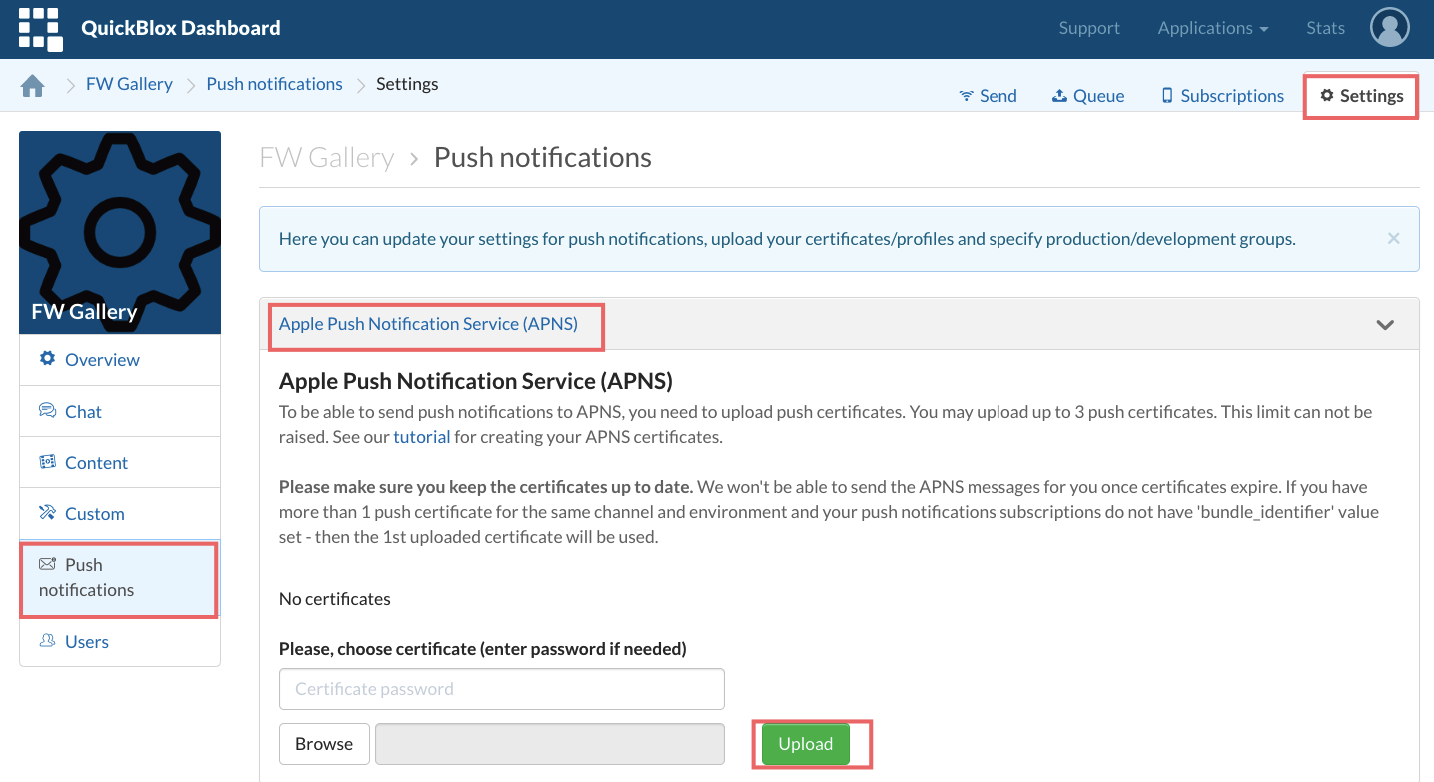

Upload certificate to Dashboard

To upload the APNS certificate to QuickBlox Dashboard you need to do the following:

  1. Open your QuickBlox Dashboard.
  2. Go to Push notifications module section.
  3. Switch to the Settings tab.
  4. Locate Apple Push Notifications Service (APNS) section.
  5. Upload the newly created APNS certificate.
1370

Choose the certificate and enter the password if needed. After this, you will be able to start using push notifications in your iOS application.

Subscribe

To start receiving push notifications, you need to get the current device push token and subscribe with it on the backend as follows.

A single user can have up to 10 subscriptions on different devices.

class AppDelegate: UIResponder, UIApplicationDelegate {

    func application(_ application: UIApplication, didFinishLaunchingWithOptions launchOptions: [UIApplicationLaunchOptionsKey: Any]?) -> Bool {

        UIApplication.shared.registerForRemoteNotifications()
        return true
    }
    ...

    //MARK: - UNUserNotification
    func application(_ application: UIApplication, didRegisterForRemoteNotificationsWithDeviceToken deviceToken: Data) {

        guard let identifierForVendor = UIDevice.current.identifierForVendor else {
            return
        }
        let deviceIdentifier = identifierForVendor.uuidString
        let subscription = QBMSubscription()
        subscription.notificationChannel = .APNS
        subscription.deviceUDID = deviceIdentifier
        subscription.deviceToken = deviceToken
        QBRequest.createSubscription(subscription, successBlock: { (response, objects) in
        }, errorBlock: { (response) in
            debugPrint("[AppDelegate] createSubscription error: \(String(describing: response.error))")
        })
    }

    func application(_ application: UIApplication, didFailToRegisterForRemoteNotificationsWithError error: Error) {
        debugPrint("Unable to register for remote notifications: \(error.localizedDescription)")
    }
}
@implementation AppDelegate

- (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions {

    [[UIApplication sharedApplication] registerForRemoteNotifications];

    return YES;
}
...

- (void)application:(UIApplication *)application didRegisterForRemoteNotificationsWithDeviceToken:(NSData *)deviceToken {
    NSString *deviceIdentifier = [[[UIDevice currentDevice] identifierForVendor] UUIDString];

    // subscribing for push notifications
    QBMSubscription *subscription = [QBMSubscription subscription];
    subscription.notificationChannel = QBMNotificationChannelAPNS;
    subscription.deviceUDID = deviceIdentifier;
    subscription.deviceToken = deviceToken;

    [QBRequest createSubscription:subscription successBlock:nil errorBlock:nil];
}

- (void)application:(UIApplication *)application didFailToRegisterForRemoteNotificationsWithError:(NSError *)error {
    NSLog(@"Failed to register for notifications:%@", error);
}
@end

📘

You cannot test push notifications in the iOS simulator. You need a physical iOS device and an Apple developer account.

🚧

The deviceToken is a device registration token generated by the APNS or GCM/FCM. The token can be unregistered by the APNS or GCM/FCM anytime. In this case, the device should be registered again and obtain a new token. When a new token is obtained, a new subscription should be created.

Subscribe for VoIP push notifications

Normally, the VoIP push notifications are used in applications with video/audio calling capabilities.

In the past, a VoIP app had to maintain a persistent network connection with a server to receive incoming calls and other data. This meant writing complex code that sent periodic messages back and forth between the app and server to keep a connection alive, even when the app was not in use. This technique resulted in frequent device wakes that wasted energy. It also meant that if a user quit the VoIP app, calls from the server could no longer be received. Instead of persistent connections, developers should use VoIP push notifications.

VoIP push notifications are different than regular APNS notifications mainly in how they are set up in the iOS app. iOS SDK provides the PushKit API to implement VoIP push notifications.

import PushKit

@UIApplicationMain
class AppDelegate: UIResponder, UIApplicationDelegate, PKPushRegistryDelegate {

    func application(_ application: UIApplication, didFinishLaunchingWithOptions launchOptions: [UIApplicationLaunchOptionsKey: Any]?) -> Bool {
        self.voipRegistration()

        return true
    }

    // Register for VoIP notifications
    func voipRegistration() {
        let mainQueue = dispatch_get_main_queue()
        // Create a push registry object
        let voipRegistry: PKPushRegistry = PKPushRegistry(mainQueue)
        // Set the registry's delegate to self
        voipRegistry.delegate = self
        // Set the push type to VoIP
        voipRegistry.desiredPushTypes = [PKPushTypeVoIP]
    }

    // MARK: - PKPushRegistryDelegate protocol
    func pushRegistry(registry: PKPushRegistry!, didUpdatePushCredentials credentials: PKPushCredentials!, forType type: String!) {
        // Register VoIP push token (a property of PKPushCredentials) with server

        let deviceIdentifier: String = UIDevice.current.identifierForVendor!.uuidString

        let subscription = QBMSubscription()
        subscription.notificationChannel = .APNSVOIP
        subscription.deviceUDID = deviceIdentifier
        subscription.deviceToken = deviceToken
        QBRequest.createSubscription(subscription, successBlock: { (response, objects) in
        }, errorBlock: { (response) in
            debugPrint("[AppDelegate] createSubscription error: \(String(describing: response.error))")
        })
    }
}
#import <PushKit/PushKit.h>

@interface AppDelegate () <PKPushRegistryDelegate>
@end

@implementation AppDelegate

- (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions {
    [self voipRegistration];

    return YES;
}

// Register for VoIP notifications
- (void) voipRegistration {
    dispatch_queue_t mainQueue = dispatch_get_main_queue()
    // Create a push registry object
    PKPushRegistry * voipRegistry = [[PKPushRegistry alloc] initWithQueue: mainQueue];
    // Set the registry's delegate to self
    voipRegistry.delegate = self;
    // Set the push type to VoIP
    voipRegistry.desiredPushTypes = [NSSet setWithObject:PKPushTypeVoIP];
}

// MARK: - PKPushRegistryDelegate protocol
- (void)pushRegistry:(PKPushRegistry *)registry didUpdatePushCredentials: (PKPushCredentials *)credentials forType:(NSString *)type {
    // Register VoIP push token (a property of PKPushCredentials) with server

    NSString *deviceIdentifier = [[[UIDevice currentDevice] identifierForVendor] UUIDString];

    // subscribing for push notifications
    QBMSubscription *subscription = [QBMSubscription subscription];
    subscription.notificationChannel = QBMNotificationChannelAPNSVOIP;
    subscription.deviceUDID = deviceIdentifier;
    subscription.deviceToken = deviceToken;

    [QBRequest createSubscription:subscription successBlock:nil errorBlock:nil];
}

@end

Send APNS push notifications

You can manually initiate sending of push notifications to a user/users on any event in your application. To do so, you need to form push notification parameters (payload) and set push recipients.

let event = QBMEvent()
event.notificationType = .push
event.usersIDs = "20,21"
event.type = .oneShot

var pushParameters = [String : String]()
pushParameters["message"] = "Bitcoin trends"
pushParameters["ios_badge"] = "2"
pushParameters["ios_sound"] = "app_sound.wav"

// custom params
pushParameters["thread_likes"] = "24"
pushParameters["thread_id"] = "678923"

if let jsonData = try? JSONSerialization.data(withJSONObject: pushParameters, options: .prettyPrinted) {
    let jsonString = String(bytes: jsonData, encoding: String.Encoding.utf8)
    event.message = jsonString
}

QBRequest.createEvent(event, successBlock: {(response, events) in

}, errorBlock: {(response) in

})
QBMEvent *event = [QBMEvent event];
event.notificationType = QBMNotificationTypePush;
event.usersIDs = @"21,22";
event.type = QBMEventTypeOneShot;

NSMutableDictionary *pushParameters = [NSMutableDictionary  dictionary];
pushParameters[@"message"] = @"Bitcoin trends";
pushParameters[@"ios_badge"] = @"2";
pushParameters[@"ios_sound"] = @"app_sound.wav";

// custom parameters
pushParameters[@"thread_likes"] = @"24";
pushParameters[@"thread_id"] = @"678923";

NSError *error = nil;
NSData *sendData = [NSJSONSerialization dataWithJSONObject:pushParameters options:NSJSONWritingPrettyPrinted error:&error];
NSString *jsonString = [[NSString alloc] initWithData:sendData encoding:NSUTF8StringEncoding];
event.message = jsonString;
[QBRequest createEvent:event successBlock:^(QBResponse * _Nonnull response, NSArray<QBMEvent *> * _Nullable events) {

} errorBlock:^(QBResponse * _Nonnull response) {

}];
ArgumentRequiredDescription
eventYesA model for representing events.

🚧

You can send only FCM data messages to the Android app. QuickBlox doesn't support FCM notification messages.

To process FCM data messages on your app when the app is in the background, you need to handle them. If not handled, they will not pop on the screen even if the app has received such push notification. See FCM documentation to learn more about data messages.

🚧

If the iOS app is not subscribed to APNS VoIP notifications or the APNS VoIP certificate has expired, the regular APNS will be delivered instead of APNS VoIP.

Send VoIP push notifications

You can manually initiate sending of push notifications to a user/users on any event in your application. To do so, you need to form push notification parameters (payload) and set push recipients.

let event = QBMEvent()
event.notificationType = QBMNotificationType.push
event.usersIDs = "20,21"
event.type = QBMEventType.oneShot

let payload = [
    "ios_voip": "1",
    "VOIPCall": "1",
    "sessionID": "767565gfh865486h548k6586h5868",
    "opponentsIDs": "20,21"
]
let data = try? JSONSerialization.data(withJSONObject: payload, options: .prettyPrinted)
var message = ""
if let data = data {
    message = String(data: data, encoding: .utf8) ?? ""
}
event.message = message

QBRequest.createEvent(event, successBlock: {(response, events) in

}, errorBlock: {(response) in

})
QBMEvent *event = [QBMEvent event];
event.notificationType = QBMNotificationTypePush;
event.usersIDs = @"21,22";
event.type = QBMEventTypeOneShot;

NSDictionary *payload = @{
    @"ios_voip" : @"1",
    @"VOIPCall"  : @"1",
    @"sessionID" : @"767565gfh865486h548k6586h5868",
    @"opponentsIDs" : @"20,21"
};
NSData *data = [NSJSONSerialization dataWithJSONObject:payload options:NSJSONWritingPrettyPrinted error:nil];
NSString *message = [[NSString alloc] initWithData:data encoding:NSUTF8StringEncoding];
event.message = message;

[QBRequest createEvent:event successBlock:^(QBResponse * _Nonnull response, NSArray<QBMEvent *> * _Nullable events) {

} errorBlock:^(QBResponse * _Nonnull response) {

}];
ArgumentRequiredDescription
eventYesA model for representing events.

Receive push notifications

To receive push notifications, use the code snippet below.

// MARK: - AppDelegate
func application(_ application: UIApplication, didReceiveRemoteNotification userInfo: [AnyHashable : Any]) {

}

func application(_ application: UIApplication, didReceiveRemoteNotification userInfo: [AnyHashable : Any], fetchCompletionHandler completionHandler: @escaping (UIBackgroundFetchResult) -> Swift.Void) {

}
// MARK: - AppDelegate
- (void)application:(UIApplication *)application didReceiveRemoteNotification:(NSDictionary *)userInfo {

}

- (void)application:(UIApplication *)__unused application didReceiveRemoteNotification:(NSDictionary *)userInfo fetchCompletionHandler:(void (^)(UIBackgroundFetchResult))completionHandler {

}

Receive VoIP push notifications

To receive push notifications, use the code snippet below.

// MARK: - PKPushRegistryDelegate protocol

// Handle incoming pushes
func pushRegistry(registry: PKPushRegistry!, didReceiveIncomingPushWithPayload payload: PKPushPayload!, forType type: String!) {

}
// MARK: - PKPushRegistryDelegate protocol

// Handle incoming pushes
- (void)pushRegistry:(PKPushRegistry *)registry didReceiveIncomingPushWithPayload:(PKPushPayload *)payload forType:(NSString *)type {

}

Unsubscribe

For a user to stop receiving push notifications, unsubscribe from receiving push notifications by invoking the deleteSubscription(withID: subscription.id) method below. You can also specify the device ID to verify if the subscription is being deleted for a specific device.

guard let uuidString = UIDevice.current.identifierForVendor?.uuidString else {
    return
}

QBRequest.subscriptions(successBlock: { (response, subscriptions) in
    for subscription in subscriptions {
        if let subscriptionsUIUD = subscription.deviceUDID,
           subscriptionsUIUD == uuidString {
            QBRequest.deleteSubscription(withID: subscription.id) { (response) in
                //Block with response if the request delete Subscription is succeeded.
            }, errorBlock: { (response) in
                //Block with response if the request delete Subscription is failed.
            })
        }
    }
}, errorBlock: {(response) in
    //Block with response instance if the request get subscriptions is failed.
})
NSString *deviceIdentifier = [[[UIDevice currentDevice] identifierForVendor] UUIDString];

[QBRequest subscriptionsWithSuccessBlock:^(QBResponse * _Nonnull response, NSArray<QBMSubscription *> * _Nullable objects) {
    for (QBMSubscription *subscription in objects) {
        if ([subscription.deviceUDID isEqualToString:deviceIdentifier]) {
            [QBRequest deleteSubscriptionWithID:subscription.ID successBlock:^(QBResponse * _Nonnull response) {
                //Block with response if the request delete Subscription is succeeded.
            } errorBlock:^(QBResponse * _Nonnull response) {
                //Block with response if the request delete Subscription is failed.
            }];
        }
    }
} errorBlock:^(QBResponse * _Nonnull response) {
    //Block with response instance if the request get subscriptions is failed.
}];
ArgumentRequiredDescription
subscription.idyesID of QuickBlox subscription.

Unsubscribe VoIP push notifications

For a user to stop receiving VoIP push notifications, unsubscribe from receiving VoIP push notifications by invoking the deleteSubscription(withID: subscription.id) method below. You can also specify the device ID to verify if the subscription is being deleted for a specific device.

// MARK: - PKPushRegistryDelegate protocol

func pushRegistry(_ registry: PKPushRegistry, didInvalidatePushTokenFor type: PKPushType) {
    guard let uuidString = UIDevice.current.identifierForVendor?.uuidString else {
        return
    }

    QBRequest.subscriptions(successBlock: { (response, subscriptions) in
        for subscription in subscriptions {
            if let subscriptionsUIUD = subscription.deviceUDID,
               subscriptionsUIUD == uuidString,
               subscription.notificationChannel == .APNSVOIP {
                QBRequest.deleteSubscription(withID: subscription.id) { (response) in
                    //Block with response if the request delete Subscription is succeeded.
                } errorBlock: { (response) in
                    //Block with response if the request delete Subscription is failed.
                }
            }
        }
    }) { (response) in
        //Block with response instance if the request get subscriptions is failed.
    }
}
// MARK: - PKPushRegistryDelegate protocol
- (void)pushRegistry:(PKPushRegistry *)registry didInvalidatePushTokenForType:(PKPushType)type {

NSString *deviceIdentifier = [[[UIDevice currentDevice] identifierForVendor] UUIDString];

[QBRequest subscriptionsWithSuccessBlock:^(QBResponse * _Nonnull response, NSArray<QBMSubscription *> * _Nullable objects) {
    for (QBMSubscription *subscription in objects) {
        if ([subscription.deviceUDID isEqualToString:deviceIdentifier] && subscription.notificationChannel == QBMNotificationChannelAPNSVOIP) {
            [QBRequest deleteSubscriptionWithID:subscription.ID successBlock:^(QBResponse * _Nonnull response) {
                //Block with response if the request delete Subscription is succeeded.
            } errorBlock:^(QBResponse * _Nonnull response) {
                //Block with response if the request delete Subscription is failed.
            }];
        }
    }
} errorBlock:^(QBResponse * _Nonnull response) {
    //Block with response instance if the request get subscriptions is failed.
}];
}
ArgumentRequiredDescription
subscription.idyesID of the QuickBlox subscription.

Troubleshooting

A subscription is removed after a push is sent and the push isn't delivered

Cause: a device registration token is invalid.

📘

The device registration token is represented as deviceToken within the system and is set in the subscription. See this section to learn how to subscribe a device to push notifications.

Tip: check if the device registration is correct. The device registration token can be invalid due to a number of reasons:

  1. Some other data is set instead of a correct device registration token. For example, a Firebase project ID, Firebase user token, etc.
  2. The client app unregistered itself from GCM/FCM. This can happen if the user uninstalls the application or, on iOS, if the APNs Feedback Service reported the APNs token as invalid.
  3. The registration token expired. For example, Google might decide to refresh registration tokens or the APNs token may have expired for iOS devices.
  4. The client app was updated, but the new version is not configured to receive messages.

For all these cases, remove the invalid device registration token and stop using it to send messages. Then, obtain a new token and make sure to create a new subscription with a valid token.


What’s Next
